Data Centers

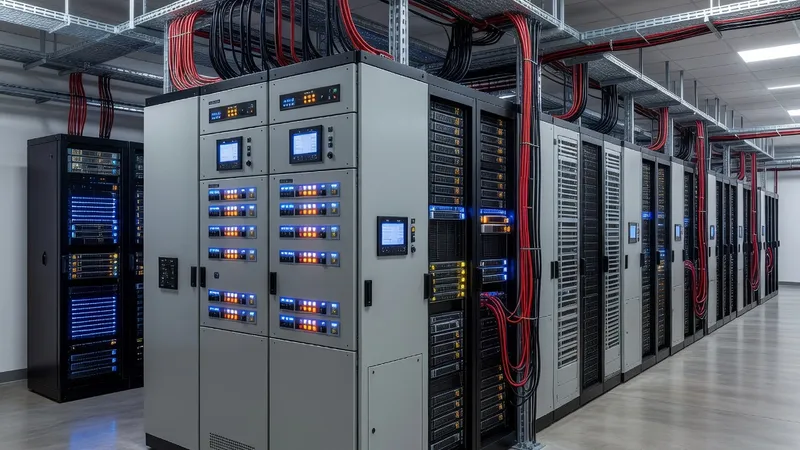

Data center electrical distribution demands IEC 61439 panel assemblies engineered for continuous availability, granular monitoring, and predictable fault performance. Typical installations use vendor platforms such as Siemens SIVACON/S8, ABB MNS, Schneider Electric Prisma Set and Rittal enclosures combined with Eaton and Legrand components to implement main distribution boards (MDBs), automatic transfer switches (ATS), metering panels, power‑factor compensation, busbar trunking and rack power panels (RPPs). Designs commonly range from 400 A feeder panels up to 6,300 A or higher for central switchgear, with busbar trunking and switchgear rated 3,200 A–6,300 A depending on topology. IEC 61439-1 and -2 define required type tests (temperature rise, dielectric, short‑time withstand, making/ breaking capacity, and verification of clearances/creepage) and internal separation (Forms of Separation: Form 1, Form 2, Form 3b, Form 4b) that are critical for maintainability and safety in Tier III/IV architectures. Short‑circuit ratings for data‑center panels are usually specified between 25 kA and 100 kA (r.m.s.), with many central MDBs and ATSs designed to 50–100 kAIC to match utility fault levels and selective coordination studies per IEC 60947 series and IEEE 1584 calculations. Redundant A/B feeds, dual UPS strings, and static transfer switches (STS) or ATS assemblies are common to achieve concurrently maintainable or fault‑tolerant configurations. Metering and energy analytics (Siemens SENTRON PAC, Schneider PowerLogic, ABB EQ) provide per‑circuit energy and harmonic monitoring for PUE optimization and harmonic mitigation planning. PLC automation panels and BMS/SCADA gateways using Modbus, SNMP or IEC 61850 enable supervisory control and active load shedding for thermal and power management. Environmental design considerations include hot‑aisle/cold‑aisle interactions, elevated ambient derating (design often validated at 35–40 °C ambient), humidity control, dust/particulate ingress (IP20–IP54 selections), and acoustic/thermal management inside enclosed switchgear rooms. Battery rooms and areas with potential hydrogen accumulation must consider IEC 60079 for explosive atmospheres and ventilation strategies; explosion‑rated enclosures or remote battery disconnects are applied where necessary. Compliance is achieved by combining manufacturer type‑tested assemblies (e.g., SIVACON, MNS, Prisma Set) with project‑specific verification tests per IEC 61439-1/-2/-3/-6. Harmonic distortion, power factor and short‑circuit coordination are validated by protection studies and factory routine tests. For seismic regions and mission‑critical SLAs, mechanical anchoring, redundant monitoring channels and maintenance‑friendly Forms of Separation (4b preferred for live‑work segregation) ensure uptime and personnel safety. Real‑world applications include hyperscale data centers, colocation facilities, edge sites and modular data centers where compact busbar trunking systems and remote power panels deliver dense, monitored power to high‑kW racks (15–30 kW+ per rack).
