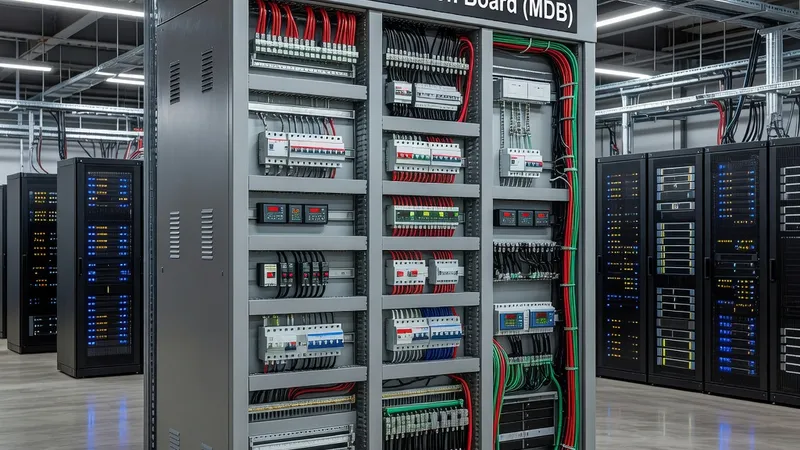

Main Distribution Board (MDB) for Data Centers

Main Distribution Board (MDB) for data centers is a purpose-engineered IEC 61439-2 low-voltage switchgear assembly that performs the primary power distribution function between transformer outputs/utility/generator sources and downstream PDUs, switchboards and busbar trunking systems. Data center MDBs are designed around mission-critical requirements: redundant A/B feeds, concurrent maintainability for Tier III, fault-tolerant topologies for Tier IV, and precision energy monitoring to support Power Usage Effectiveness (PUE) and DCIM systems. Typical architectures use type-tested busbar systems (e.g., Prisma Set, Siemens SIVACON bus systems or ABB MNS-type constructions) with verified temperature-rise and short-circuit withstand (Icw) ratings from 50 kA to 100 kA / 1 s and rated currents up to 6,300 A at up to 690 V AC. Core technologies include incoming ACBs (Masterpact, ABB Emax 2, Siemens 3WL) with integrated protection, metering and communication, static transfer switches (STS) or automatic transfer switches for seamless transfer of critical loads, and outgoing MCCBs with adjustable trip curves (IEC 60947-2 compliant). Protection chains incorporate earth-fault/ground-fault relays, residual current monitoring (RCDs per IEC 61008/61009 where required), and selective overcurrent coordination via protection relays such as SEL-351, ABB REF/REJ or Schneider IEDs. Communications and monitoring use PowerLogic PM8000, Siemens SENTRON PAC meters, SNMP/Modbus TCP or IEC 61850 mapping for relay telemetry and SCADA integration. Form of separation and maintainability are defined per IEC 61439-1/2: typical data center MDBs implement Form 2b to Form 4b segregation (dedicated busbar compartment, separate cable and functional partitions) to enable safe live work and concurrent maintenance. Enclosure IPs are selected per environment — IP31 for controlled indoor rooms up to IP54 for dusty or more aggressive spaces — and environmental testing follows IEC 60068 series for ambient temperature, humidity and vibration profiles. Seismic anchoring, salt-spray coatings and enhanced corrosion protection are offered for coastal or edge sites. Short-circuit rating selection, coordination studies (time-current curves, I2t limits), and type testing per IEC 61439-2 are mandatory for data center MDBs. Factory type-tested assemblies deliver predictable temperature rise, dielectric, and short-time withstand performance. Arc-flash mitigation is addressed through fast protection, arc detection systems and operational procedures; designers may apply IEEE 1584 incident energy analysis alongside local safety regulations. Typical applications include hyperscale colocation facilities, enterprise compute halls, edge micro-data centers and telecom central offices where uptime, accurate metering and seamless switchover are non-negotiable.
