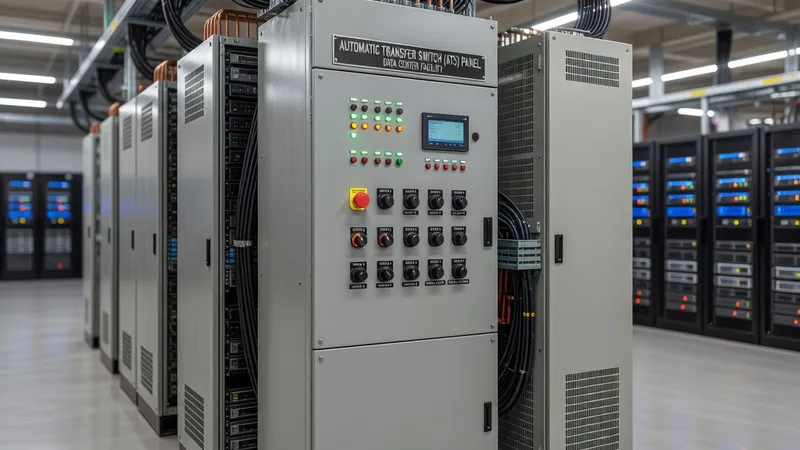

Automatic Transfer Switch (ATS) Panel for Data Centers

Automatic Transfer Switch (ATS) Panels for data centers are engineered IEC 61439 low-voltage switchgear assemblies that combine ultra-reliable transfer mechanisms, precision metering, and segregation strategies to meet Tier III and Tier IV availability requirements. Typical ATS panels are built on proven low-voltage platforms such as Siemens SIVACON, Schneider MNS or Prisma Set architectures and integrate static transfer switches (STS) or motorized/mechanical changeover mechanisms sized to 125 A up to 4000 A bus ratings. Designs comply with IEC 61439-1/-2 rules for construction, dielectric and temperature-rise limits and employ switching devices certified to IEC 60947 series. In data center practice, ATS assemblies often require short-circuit withstand in the 50 kA–100 kA range (Icw dependent on busbar sizing, busbar bracing and breaker selection) and coordination with upstream generator protection and downstream MCCBs for selective clearing. Redundant A/B (and sometimes C) power-path topologies are standard: dual-bus transfer where each ATS provides automatic changeover between utility/UPS/generator sources while preserving concurrently maintainable or fault-tolerant architecture. Typical forms of separation used to meet maintainability and operator safety requirements include Form 2b, Form 3b and Form 4b internal segregation per IEC 61439 definitions; busbar compartments, draw-out ATS modules and segregated metering compartments reduce risk during maintenance. Transfer times are tuned to application: static (thyristor/IGBT) switches enable semiconductor-based transfers below 0.1 s for UPS bypass or synchronized paralleling, whereas motorized/mechanical ATS offers reliable mechanical isolation with transfer/retransfer windows of 0.5–10 s suitable for generator acceptance delays. Data-center ATS panels embed per-circuit energy metering, waveform capture and harmonic analysis for PUE optimisation and harmonics mitigation; communications typically include Modbus TCP/RTU, SNMP and optional IEC 61850 for tighter substation integration. Environmental design accounts for ASHRAE-recommended ambient ranges, high-efficiency internal airflow to reduce temperature rise, IP ratings from IP31 (standard indoor) up to IP54 for stricter ingress protection, plus seismic anchoring and fire-zone segregation for battery rooms. For special locations, components and enclosures can be specified to IEC 60079 for hazardous atmospheres. Manufacturers provide factory type-testing and routine testing per IEC 61439-1/-2, including verification of temperature rise, dielectric properties, short-circuit withstand, and verification of protective device coordination (Ics/Icu ratings). Typical field deliverables include FAT witness testing, site acceptance tests (SAT), arc-flash labeling, single-line diagrams, relay settings and coordination studies. For mission-critical facilities the ATS panel is not merely a switch — it is a monitored system component integrating protection, metering, communications and maintainability features to deliver the uptime objectives required by modern Tier III/IV data centers.
