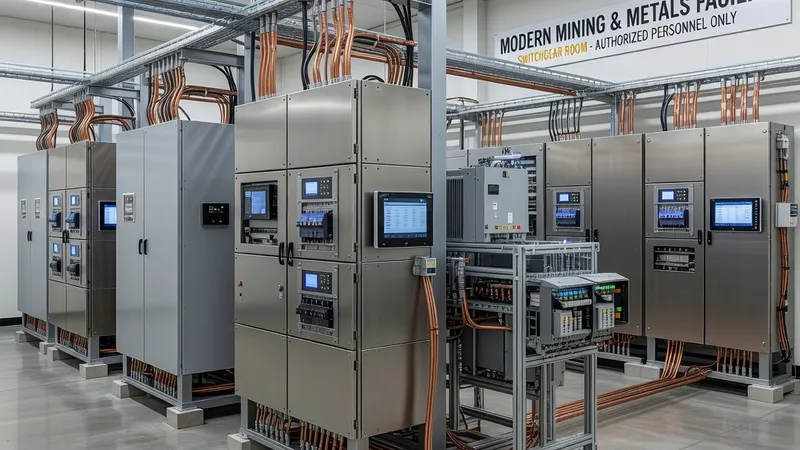

Mining & Metals

Mining & Metals installations demand heavy‑duty IEC 61439 panel assemblies engineered for extreme ambient, mechanical and electrical stresses. Typical site conditions include wide temperature ranges (–40°C to +55°C), high altitude derating, abrasive dust, corrosive atmospheres (C4/C5‑M), continuous vibration and seismic loading. Panel lines such as Siemens SIVACON, ABB MNS and Schneider Prisma Set are commonly adapted by OEMs and EPCs for motor‑control‑center (MCC), power‑control‑center (PCC), main‑distribution‑board (MDB), variable‑frequency‑drive (VFD) cells, generator‑control‑panel (GCP) and PLC/automation panels. Design targets include main busbar ratings from 1,600 A up to 6,300 A, feeder ratings 100–1,600 A, and short‑circuit withstand capabilities (Icu/Icw) from 25 kA to 100 kA depending on substation fault levels. IEC 61439‑1 establishes general rules and verification methods; IEC 61439‑2 addresses power switchgear and controlgear assemblies; IEC 61439‑3 covers distribution boards; IEC 61439‑6 applies when busbar trunking or specialized assemblies are used. Component performance follows IEC 60947 series for circuit breakers, contactors and motor starters, while hazardous area requirements reference IEC 60079 for explosive atmospheres and dust. Verification is achieved by a combination of type tests (temperature‑rise, dielectric/impulse, short‑circuit withstand, IP and mechanical) and routine/assembly tests documented in 61439 and executed by the manufacturer. Many mining MCCs use withdrawable functional units (Form 3b or Form 4b separation) to enable hot‑swap maintenance without complete de‑energization. VFD panels for high‑inertia conveyors and crushers typically incorporate robust DC‑link designs, dV/dt and sinusoidal filters, harmonic mitigation (detuned reactors or active filters) and forced cooling capable of derating for altitudes >1,000 m. Generator control panels integrate synchronization, load sharing and protection relays rated to handle high short‑time currents during black‑start or islanding events. Mechanical design emphasizes ingress protection (IP54 to IP66 for outdoor skids), corrosion resistance (ISO 12944 categories C4–C5M), vibration stiffening, and seismic anchoring per local codes. Arc‑flash risk reduction is implemented via fast‑acting breakers (ABB Tmax/Masterpact, Schneider Masterpact, Siemens 3WL), arc detection systems, and compartmentation consistent with IEC 61439 separation forms. Custom‑engineered panels balance type‑tested assemblies with site‑specific adaptations—heat tracing, purge and pressurization for dust zones, modular MCC buckets, and remote telemetry for condition‑based maintenance—ensuring continuous operation in the most demanding mining and metals applications.
