Healthcare

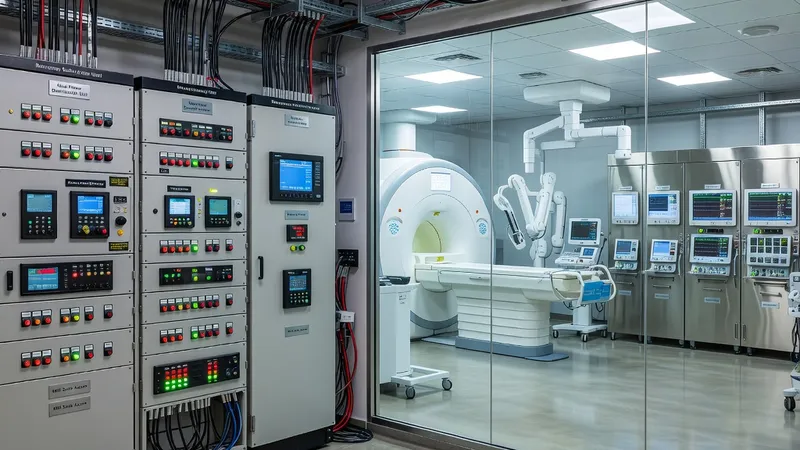

Healthcare facilities demand IEC 61439 panel assemblies engineered for life-safety, redundancy, and extremely high power quality. Typical installations include main-distribution-boards (MDB), automatic-transfer-switch (ATS) panels, lighting-distribution-boards (LDB), metering-panels, power-factor-correction (PFC) bays, isolation-transformer and clean-power panels, UPS bypass switchgear, and custom-engineered panels for MRI/CT power rooms. Manufacturers and platform examples commonly specified in hospital projects include Siemens SIVACON and MNS, Schneider Electric Prisma Set and Masterpact-based switchgear, and bespoke stainless-steel enclosures from Hager or Legrand for sterile zones. Design must satisfy IEC 61439-1 (general rules) and the applicable parts (61439-2 for power assemblies, 61439-3 distribution boards, 61439-6 site and construction-related assemblies), and comply with medical-location rules in IEC 60364-7-710. Medical IT systems (Group 2 locations: operating theaters, ICU) require insulation-monitoring devices (IMDs) per IEC 61557-8 to detect first-faults while avoiding nuisance tripping. Protective devices and components follow IEC 60947 series (MCCBs, ACBs, contactors) and insulation and surge coordination must be specified with IEC 61643-series surge protection where required. Electrical segregation and forms of separation (Forms 1 through 4b as defined in IEC 61439) are routinely used to isolate life-safety circuits from non-essential feeders. Busbar ratings are selected based on load; typical hospital MDBs range from 400 A feeder panels up to 4000 A main busbars with short-circuit withstands commonly specified at 25 kA, 50 kA or 65 kA symmetrical depending on utility fault levels and coordination studies. Air circuit breakers (e.g., Schneider Masterpact, Siemens 3WL) and molded-case breakers provide selective discrimination and allow short-circuit ratings to be met by calculation and type-testing requirements of IEC 61439. Power quality mitigation for sensitive equipment is essential: isolation transformers for MRI rooms, active harmonic filters for imaging suites and modern HVAC and drive loads, and dedicated clean-power panels using transformer isolation or UPS-fed switchgear. EMI/RFI shielding, low impedance grounding, and compliance with medical electrical equipment immunity (IEC 60601 family) are addressed during panel design. Environmental and mechanical considerations include stainless-steel enclosures (AISI 304/316) for sterile or corrosive environments, ingress protection (IP54/IP55 or higher), seismic anchoring, controlled ventilation, and internal-arc protection/venting per IEC 61641. Compliance is proven through type and routine testing: temperature-rise, dielectric, short-circuit verification, mechanical operation and routine inspection documented per IEC 61439 test regimes and factory acceptance tests (FATs). For hospitals, documentation often includes single-line diagrams, protection coordination studies, maintenance manuals, and verification certificates enabling hospital engineering teams and EPC contractors to maintain safe, continuous operation for critical patient-care systems.
