Pharmaceuticals

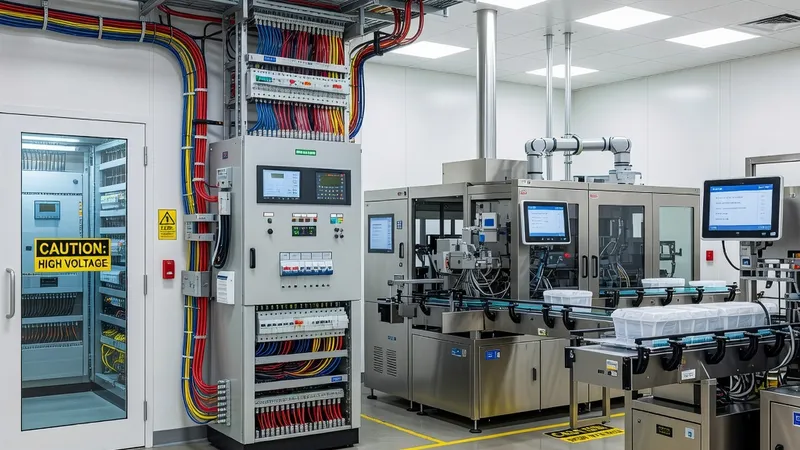

Pharmaceutical facilities impose exacting requirements on IEC 61439 low-voltage panel assemblies because of product-protection, validation, hygienic and availability imperatives. Typical applications include main distribution boards (MDBs) feeding sterile filling lines, motor control centers (MCCs) for cleanroom HVAC and aseptic conveyors, VFD panels for bioreactor agitators and centrifuges, automatic transfer switches (ATS) for redundant power to CIP skids, PLC/automation panels for batch control, and power-factor correction and UPS distribution panels for critical load ride-through. Manufacturers commonly use modular switchgear platforms such as Siemens SIVACON, ABB MNS and Schneider Prisma Set as the backbone for 400–4000 A MDBs and 100–2500 A MCCs, with short-circuit ratings selected from 25 kA to 100 kA rms symmetrical depending on site fault-level. Design and verification must follow IEC 61439-1/2/3/6 for assembly construction, verification tests and documentation. Components are selected per IEC 60947 series (circuit-breakers, contactors, motor-protective devices) and hazardous-solvent areas per IEC 60079 where applicable. Essential type tests and verifications include temperature-rise, dielectric tests, short-circuit withstand and making tests, mechanical operation, and IP/ingress tests (IEC 60529). For pharmaceuticals, the manufacturer’s design dossier and routine test records are incorporated into GMP validation packages and mapped to GAMP 5 validation lifecycle requirements and FDA/EMA expectations. Environmental and hygienic construction features are central: stainless steel 316L hygienic enclosures with electro-polished finishes, sanitary cable penetrations, flush doors, sloped tops and radiused internal corners to meet cleanroom cleaning protocols and ISO 14644 classifications. Where panels cannot reside inside classified zones, sealed wall-penetration systems or purge assemblies with positive pressure and fiber-optic control links are used to avoid contamination risk. Enclosures are specified to IP66/NEMA 4X for washdown areas; surface roughness (Ra) and weld treatments are controlled to enable sterilization. Functional separation and selective coordination are critical for safety and maintainability. Assemblies are designed to achieve Forms of Separation (Form 1, Form 2, Form 3b, Form 4a/4b) per IEC 61439 depending on operational isolation needs. Selective discrimination and short-circuit withstand ratings are coordinated using IEC 60947-2 device characteristics and protective relay settings; arc-flash mitigation (advanced trip, arc detection, remote racking) is specified for high-energy MDBs feeding batch-critical loads (bioreactors, lyophilizers) to limit personnel risk and batch loss. Documentation delivered with each assembly includes detailed wiring diagrams, single-line, cable schedules, BOM with component certificates, type and routine test reports, painting/passivation records, and FAT/IQ-support packages to align with validation and maintenance programs. For turnkey projects, engineering firms and panel manufacturers integrate IEC 61439 compliance, GMP and regulatory traceability to deliver robust, auditable solutions for pharmaceutical and biotech plants.
