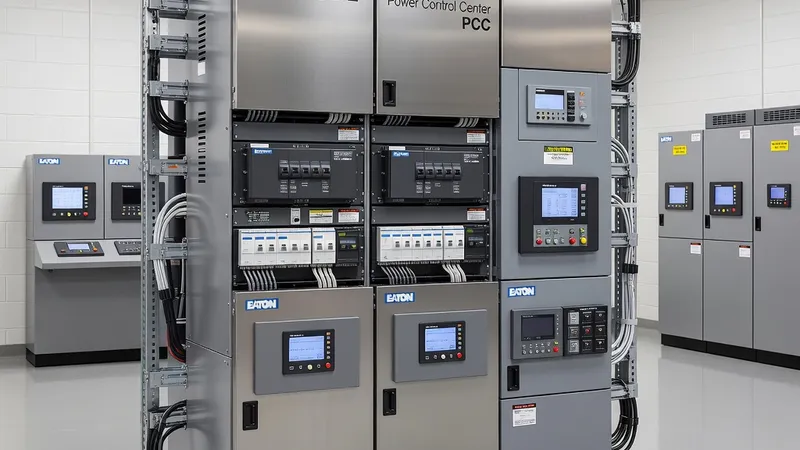

Eaton Power Control Center (PCC)

The Eaton Power Control Center (PCC) is a factory-assembled IEC 61439-2 power distribution solution that combines Eaton’s xEnergy type‑tested switchboard architecture with high‑performance protection and motor control devices to deliver transformer‑sized distribution up to 6300 A. xEnergy is a type‑tested switchboard system designed and verified against IEC 61439-2 type‑test criteria (temperature rise, short‑circuit withstand, dielectric properties and mechanical tests). Typical Eaton component families integrated into PCC assemblies include NZM/NZMN moulded‑case circuit breakers for feeder protection (with electronic trip options and communications modules), DIL contactors for motor switching, and motor protection devices such as PKZ style trip units for branch motor protection. The assemblies are engineered with copper or aluminium high‑capacity busbars capable of carrying full transformer output and rated for short‑circuit withstand in the range of 65–120 kA (1 s) depending on configuration and busbar sizing. Form of separation and segregation are specified from Form 3b up to Form 4b to meet site safety and maintainability needs: Form 3b provides segregation between busbar, cable and functional units, while Form 4b provides vertical and horizontal segregation for draw‑out or fixed units. Typical PCC voltage class is up to 690 V AC, with IP protection levels available from IP31 for indoor electrical rooms to IP54 for harsher environments. Cable entries, tap‑offs, and busbar taps are arranged to enable selective coordination from the transformer secondary to final circuits; coordination studies using IEC 60947 series characteristics for NZM/NZMN and upstream transformer protection are standard practice to ensure discrimination. Integrated power monitoring, demand management and power quality analysis (including harmonic measurement) is implemented using compatible metering units and communications gateways (Modbus/RTU, Modbus/TCP, BACnet, or IEC 61850 where specified). Eaton PCCs can be specified for industrial, commercial, data center, mining, petrochemical and marine/offshore projects; hazardous area execution requires Ex certified enclosures and components to IEC 60079 standards. For clients comparing ecosystems, xEnergy PCCs sit alongside other type‑tested platforms such as SIVACON, MNS and Prisma Set — all of which follow IEC 61439 verification philosophies — but xEnergy is chosen where Eaton breaker ecosystems (NZM/NZMN), Eaton contactors and Eaton motor protection are preferred for local spares and coordination. Routine and factory tests (insulation, continuity of protective circuits, temperature rise verification by calculation or test, and functional tests of protection and communication) are performed prior to shipment to ensure compliance with IEC 61439-1/-2 requirements and site‑ready delivery.
