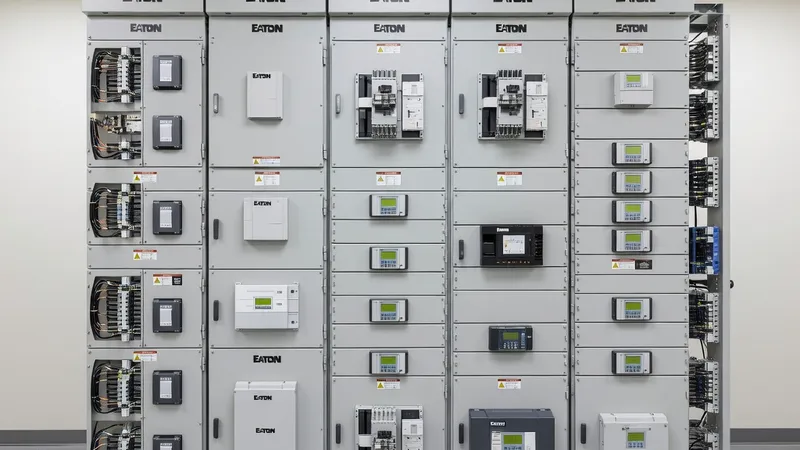

Eaton Motor Control Center (MCC)

The Eaton Motor Control Center (MCC) is an IEC 61439-compliant MCC solution built around Eaton's xEnergy type-tested switchboard concept and proven component families (NZM/NZMN moulded-case circuit breakers, DIL contactors, PKZ motor protectors and Eaton variable-frequency drive integration). Designed for 690 V AC distribution, Eaton MCCs support rated currents up to 6300 A and short-circuit withstand levels typically specified between 50 kA and 100 kA (1 s), depending on busbar configuration, jointing and type-test evidence. Assemblies are engineered to meet IEC 61439-1 and IEC 61439-2 verification requirements (temperature-rise, dielectric properties, IP and mechanical tests) and can be constructed as type-tested (xEnergy) or partially type-tested panels depending on project scope. Functional design centers on standardized withdrawable and fixed functional units sized for interchangeability and rapid maintenance. Withdrawable/plug-in units are available with racking mechanisms and mechanical interlocks to ensure safe withdrawal under test conditions; typical forms of separation implemented range from Form 3b to Form 4b to isolate busbars, functional units and cable compartments per IEC 61439-1/2. Protection coordination employs NZM/NZMN breakers with electronic trip units and communications modules, PKZ electronic motor protection relays, DIL contactors for switching duties and integrated soft-starter or VFD starter bays for variable-speed motors. Eaton MCCs are applied widely across industrial sectors — water/wastewater pumping stations, HVAC central plants, mining hoists, cement and aggregate plants, petrochemical pumping/recirculation systems, and shipboard/shore-side motor control. For hazardous-area installations, design follows IEC 60079 and uses Ex-certified ancillary devices and suitably segregated compartments or purged enclosures. Integration and communications are native design considerations: motor protection relays and electronic breakers offer Modbus/Profibus/IEC 61850 gateways, enabling SCADA and asset-management functions for predictive maintenance. Where harmonics and common-mode issues may arise with large VFD fleets, typical engineering includes drive-grade bus segmentation, line reactors or active harmonic filters and selective earth-fault strategies. Eaton’s xEnergy-based MCCs are often compared to Siemens SIVACON and MNS or Schneider Prisma Set platforms; while all deliver modularity and high short-circuit ratings, xEnergy emphasizes Eaton breaker families (NZM/NZMN) and compact, type-tested low-voltage switchgear footprints suitable for tightly packaged MCC rooms. Typical factory verification and site routine tests follow IEC 61439-1/2 procedures and 60947-series requirements for switching devices. For projects requiring explosion protection, coordination with IEC 60079 is mandatory. For engineering support, Patrion offers customization, short-circuit studies, motor-start studies, and full type-test documentation for procurement and third-party inspection.
