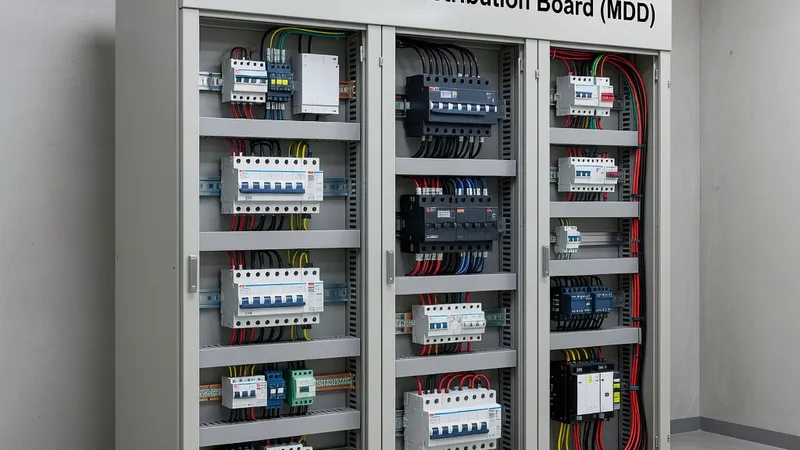

LS Electric Main Distribution Board (MDB)

The LS Electric Main Distribution Board (MDB) is a type-tested, IEC 61439-2 compliant assembly engineered for primary building and plant distribution up to 690 V AC. Designed for busbar ratings up to 6300 A and short‑circuit withstands in the 50–100 kA/1s range, the assembly uses a verified busbar system with temperature‑rise measurements and short‑circuit verification per IEC 61439-1/2. LS Electric product families integrated into the MDB include Susol and Metasol moulded-case circuit breakers (MCCBs) with thermal‑magnetic and electronic trip units, LS MC contactors for motor feeders, and iS7 variable frequency drives for controlled motor circuits and soft starting. Incoming ACBs (or compatible high‑capacity LS incoming breakers) can be specified with integrated protection and metering, and outgoing feeders are typically built with Susol/Metasol MCCBs offering adjustable long‑time, short‑time and instantaneous settings to achieve selective coordination per IEC 60947-2 requirements. Mechanical and electrical segregation is available in Forms 2b through 4b (busbar, functional segregation and full compartmentalization) to support maintainability and live‑work safety. Enclosure variants range IP31 for indoor plantrooms up to IP54 for exposed installations; explosion‑protected configurations can be adapted to IEC 60079 for hazardous areas. Protection layers include earth‑fault detection, residual current devices and the option to integrate protection relays (communication via Modbus/IEC 61850 gateways) for advanced selective tripping, metering and energy management. MDB layout follows best practice for cable routing (rear or bottom entry), removable front panels, phase segregation and dedicated space for auxiliary equipment such as metering CTs, PTs and control supplies. The LS Electric MDB is specified for applications including commercial high‑rise distribution, data center mains and UPS interface, hospital critical distribution, manufacturing plant mains and motor distribution centers, and smaller utility/solar inverter combiner schemes. For EPCs and panel builders comparing platforms, LS Electric‑based MDBs provide a competitive alternative to SIVACON, MNS or Prisma Set systems when cost, modular MCCB options and integrated VFD ecosystems (iS7) are priorities. All assemblies are subject to type and routine tests prescribed by IEC 61439‑1/2 (verification of dielectric properties, temperature rise, short‑circuit withstand, mechanical operation and protective conductor continuity) and are delivered with test reports and factory labeling for site acceptance.
