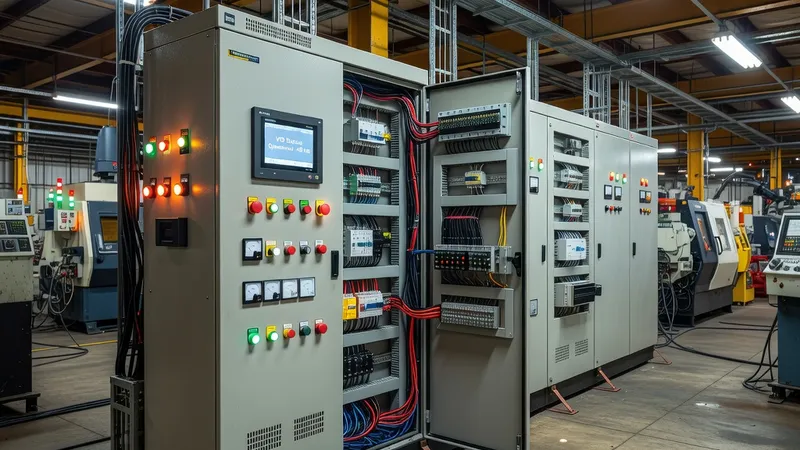

Variable Frequency Drive (VFD) Panel for Industrial Manufacturing

Variable Frequency Drive (VFD) Panel assemblies engineered for industrial manufacturing combine IEC 61439 switchgear construction with motor-control-specific technologies such as multi-pulse rectifiers, active front-end (AFE) converters, EMC filtering and dU/dt or sinusoidal output filtering. Typical factory applications—steel rolling mills, paper machines, extruders, conveyor systems, pumps and centrifuges—demand panels capable of withstanding high short-circuit levels (commonly 50–100 kA at the main bus) and continuous heavy motor loading (motor ratings in this family: 0.75–1000 kW, drive rated currents commonly 1–1600 A with bus systems designed up to 3200–4000 A). Design follows IEC 61439-1/-2 for low-voltage assemblies with coordination to IEC 60947 series for circuit-breakers, contactors and protective devices and EN/IEC 61800-3 for EMC performance of power drive systems. Mechanical platform choices include cubicle systems such as Siemens SIVACON and MNS, Schneider Prisma/PrismaSet lineups or bespoke welded-cabinet assemblies by Patrion. Typical VFD panel configurations: single-drive cubicle with incoming MCCB and output fuses; drive+transformer isolation cubicle for long motor feeders; common DC-bus or shared DC-link installations for energy recovery; and line-up motor control centers (MCC) with segmented drive bays. Forms of separation per IEC 61439 (Form 1, 2a/2b, 3a/3b, 4a/4b) are specified based on maintenance and fault containment needs—Form 4a/4b is common where live-part segregation and selective access are required in production environments. Harmonic mitigation is specified to plant power-quality limits: passive 12/18/24-pulse transformer schemes, active front-end (AFE) converters for near-unity power factor and low THD, or dedicated harmonic filters. EMC measures include C1/C2/C3 class filters and compliance testing aligned to EN/IEC 61800-3. Motor protection and safety: STO (Safe Torque Off) implemented per IEC 61800-5-2; integrated motor protection relays to IEC 60255-style functionality for thermal, overload, ground-fault and blocked-rotor conditions. Protection coordination uses IEC 60947-2 MCCB characteristics with time-current selectivity and, where required, ACBs at higher ratings. Environmental design addresses ambient temperature (standard 0–40°C, derating above 40°C), ingress protection IP31–IP54, filtered forced ventilation or air-to-air heat exchangers, and options for IP55/IP65 enclosures for washdown or corrosive atmospheres. Hazardous-area installations require compliance to IEC 60079 (ATEX/IECEx) and specific drive enclosures or certified purge-and-pressurisation. Communications and monitoring include Modbus TCP, Profinet, EtherNet/IP, Profibus and integration into SCADA/BMS or PLC systems for energy metering, harmonic trending and predictive thermal management. Typical factory spec: SCCR 50–100 kA, rated busbar up to 4000 A, drive-compatible switching and isolation, with full IEC 61439 verification and type tests documented for FAT and site acceptance.
