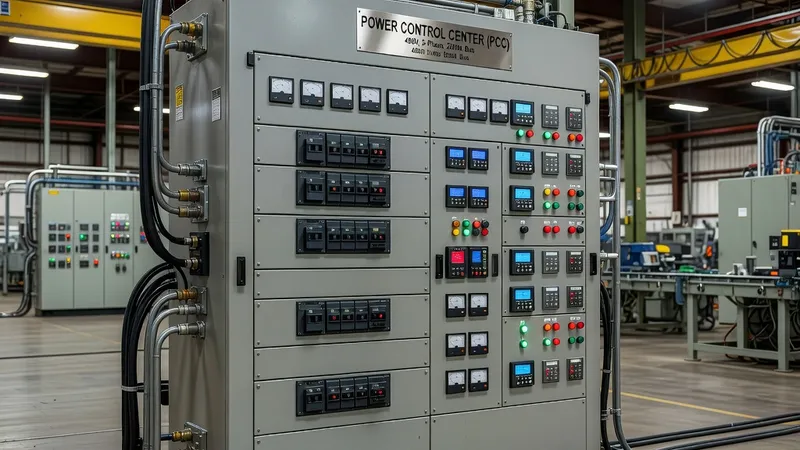

Power Control Center (PCC) for Industrial Manufacturing

Power Control Center (PCC) assemblies for industrial manufacturing are engineered low-voltage switchgear solutions that combine high-capacity distribution, motor control, and power quality management in a single IEC 61439-compliant package. Typical PCC topologies are built around a heavy-duty copper/aluminium busbar system rated to carry full transformer output (rated currents to 6,300 A) with verified short-circuit withstand (Icw) in the 65–120 kA / 1 s range. Industry-proven platforms such as Siemens SIVACON, ABB MNS and Schneider PrismaSeT illustrate modular construction practices that support withdrawable or fixed-feeder cubicles, incoming ACB/breaker cubicles, bus-tie arrangements and dedicated MCC sections for large motor strings. Designs adhere to IEC 61439-1/-2 for assembly verification and extend to IEC 60947 series for switchgear components, IEC 60079 when installed in hazardous areas, and IEEE 1584 / NFPA 70E for arc‑flash analysis and mitigation. Forms of separation (Form 3b through Form 4b) are commonly specified for industrial PCCs to isolate busbar, cable compartments and functional units, enabling safer maintenance and improved selectivity. Typical enclosure protection ranges from IP31 for dry indoor plants to IP54 for washdown or dusty environments; additional corrosion-resistant finishes and stainless enclosures are used in food, chemical and coastal plants. Industrial PCCs must deliver selective protection coordination from the transformer to final circuits. ACBs with electronic trip units (Masterpact/Emax-class), molded-case breakers and fused feeders are combined with numerical feeder protection relays and motor protection devices (SIMOCODE, electronic overload relays, soft-starter or VFD interlocks). For harmonic-rich manufacturing processes, PCCs integrate power quality monitoring (Schneider PowerLogic, Siemens SENTRON PAC series) and mitigation—passive tuned filters, active harmonic filters or STATCOM-like solutions—sized to withstand motor starting currents and continuous non-linear loads. Environmental and operational considerations include thermal design for high ambient temperatures, forced ventilation or split‑air conditioning for VFD/transformer chambers, seismic bracing per local codes, and cable management for large multi-core feeders. Arc-resistant construction options—pressure-release channels, reinforced doors and extinguishing deflectors—are specified for high-fault‑energy installations. Factory assembly and type tests per IEC 61439 (temperature rise, dielectric, short‑circuit, and functional checks) are supplemented by site FAT/SAT, protective device coordination studies and commissioning support integrated with PLC/SCADA and plant DCS for automated transfer, load shedding and demand management. For EPCs and plant owners, modern PCCs balance robust mechanical design with digital protection, metering and communications (Modbus, IEC 61850 gateways) to support Industry 4.0 monitoring and preventive maintenance strategies.
