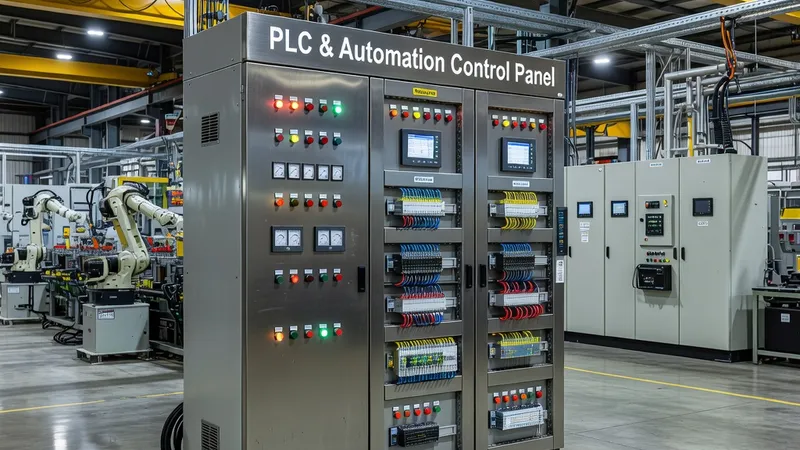

PLC & Automation Control Panel for Industrial Manufacturing

PLC & Automation Control Panel assemblies for industrial manufacturing combine IEC 61439 low-voltage switchgear practices with process-control architecture to deliver robust machine and line automation. Typical installations integrate PLC/PAC controllers (including redundant CPU architectures), hot‑swap and distributed I/O, operator HMIs, drive and motor-control sections, and managed industrial Ethernet infrastructure. Panels are engineered to match assembly-line requirements found in automotive, FMCG, metalworking and packaging plants where high short‑circuit currents (commonly 50–100 kA prospective at the main bus) and large motor clusters demand meticulous busbar design and fault-energy limitation. Popular switchgear platforms used as references include Siemens SIVACON, ABB MNS and Schneider Electric Prisma Set for main distribution and MCC integration, while custom IEC 61439‑2 modular enclosures house PLC racks and I/O sub‑racks. Design must consider IEC 61439‑1 and IEC 61439‑2 verification (rated currents, temperature rise, dielectric properties, and short‑circuit withstand), selection of switching and protective devices per IEC 60947, and, where applicable, hazardous‑area requirements per IEC 60079. Functional and electrical separation (Forms of Separation: Form 1 through Form 4b) is selected based on maintainability and safety; Form 4b is common where segregation between busbars, cable routes and functional units (control, power, communication) is required. Typical busbar ratings range 160 A up to 1600 A (and higher in plant mains), with SCCR ratings designed around 50–120 kA depending on fault level and protective device coordination (ACBs, MCCBs, fuse coordination with gG links). Communications are engineered for PROFINET, EtherNet/IP, Modbus TCP (with EtherCAT/PROFIBUS for legacy sites), managed Ethernet switches supporting VLANs, RSTP/PRP/HSR redundancy and emerging TSN features. Cybersecurity and network segmenting follow IEC 62443 guidance. 24 VDC power distribution is designed with redundancy and supervision; surge protection devices per IEC 61643 and EMC measures per IEC 61000‑6‑2/4 are mandatory in noisy production environments. Environmental considerations include ambient temperature ratings (typically −20 °C to +45/60 °C), ingress protection options (standard IP31–IP54; stainless steel, IP55/IP66 for washdown and food environments), vibration and shock mitigation for machine‑mounted panels, and heat‑management (forced ventilation, filtered fans, or heat exchangers). Safety and functional requirements such as SIL performance are addressed per IEC 61508/IEC 62061 and ISO 13849 for machine controls. Typical real‑world configurations: standalone PLC control panels for single machines, MCC‑integrated automation cabinets for motor‑intensive lines, distributed I/O cabinets near cell clusters, and hazardous‑area cabinets with purge/pressurization or Ex d housings for paint shops and solvent processing.
