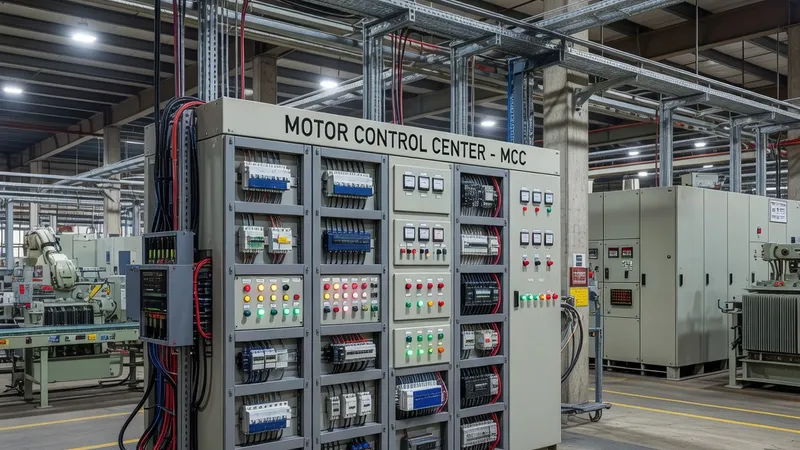

Motor Control Center (MCC) for Industrial Manufacturing

Motor Control Center (MCC) assemblies for industrial manufacturing are engineered low-voltage switchgear designed to centralize motor control, distribution and process automation while meeting the verification and safety requirements of IEC 61439-2. Typical industrial MCCs are specified up to 6300 A main bus ratings with short-circuit withstand in the 50–100 kA/1 s range; these ratings drive busbar design (laminated or solid copper, bracing for electrodynamic forces), conductor sizing, and mechanical retention. Product families such as Siemens SIVACON / MNS and Schneider Prisma SeT illustrate mainstream approaches (segregated bus, standardized functional unit footprints and racking systems) that are commonly emulated in custom MCCs. Functional units are offered as withdrawable, plug-in or fixed modules to provide fast maintenance and safe isolation; standardized unit widths and racking interfaces enable interchangeability per IEC 61439 requirements for construction and clearances. Industrial MCCs in manufacturing plants commonly combine DOL, star-delta, soft-starter (e.g., Siemens SIRIUS), and VFD (e.g., ABB ACS, Schneider Altivar) starters. Motor protection relays and multi-function drives must meet IEC 60947 series for switchgear and IEC 61800 series for adjustable speed drives; EMC and harmonic mitigation must comply with IEC 61800-3 and site harmonic studies. Communication interfaces (Modbus, ProfiNet, EtherNet/IP, OPC UA) are integrated for PLC/SCADA connectivity and condition-based monitoring of motor health, energy and arc-flash event logging. Environmental and application considerations in heavy industries — steel, paper, cement, petrochemical, automotive assembly — drive selection of IP ratings (IP31 for indoor, up to IP54 for dusty/corrosive zones), ambient derating (IEC 61439 thermal rise and altitude corrections), vibration-resistant mountings, and optional forced ventilation or heat exchangers for high ambient and VFD-heavy configurations. Hazardous area installations require compliance with IEC 60079 (Ex-rated equipment and segregation) and often separate MCC sections for safe barrier isolation. Forms of separation (Form 3b to Form 4b) are commonly specified in industrial MCCs to provide segregated busbar compartments, functional-unit separation and, where required, segregated cable compartments to facilitate safe maintenance and reduce arc propagation. Internal arc classification (IAC) is increasingly requested; arc-resistant construction and verification testing per IEC 61439/IEC 61641 protocols (IAC AFLR/AFL) are used to meet site arc-flash mitigation strategies. Verification testing — type tests (temperature-rise, dielectric, short-circuit, mechanical operation), routine tests and design verifications — is performed in accordance with IEC 61439-1/2. Typical scope includes short-circuit calculation validation, thermal verification at rated currents, protective device coordination studies for selectivity, and internal arc tests where specified. For projects requiring turnkey delivery, Patrion provides engineered MCC assemblies with detailed calculations, FAT support and site commissioning tailored to industrial manufacturing plant reliability and maintainability requirements.
