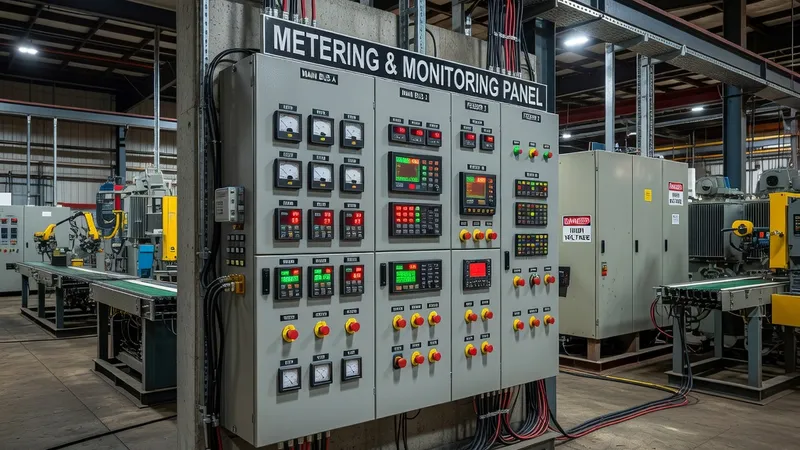

Metering & Monitoring Panel for Industrial Manufacturing

Metering & Monitoring Panels for industrial manufacturing are engineered IEC 61439 switchgear assemblies that combine revenue-grade energy measurement, multi-circuit monitoring, power-quality analysis and communications gateways in a single factory-grade cabinet. Typical applications include main and sub-distribution metering for production lines, submetering at motor control centers (MCCs), load aggregation for energy management systems (EMS), and power-quality surveillance for process automation. Product platforms commonly used as reference architectures include Siemens SIVACON and SENTRON PAC metering integrations, ABB MNS with ABB EQ/CM-MFM meters, and Schneider Electric PrismaSet or PowerLogic PM8000-based solutions for combined energy & PQ functions. Design adheres to IEC 61439-1 general rules and IEC 61439-2 requirements for power switchgear assemblies, with complementary compliance to IEC 60947 for switching devices and IEC 61000 series for EMC/power quality testing (and IEC 61000-4-30 for PQ class measurements). Panels are routinely verified for temperature-rise, dielectric, and short-circuit withstand (Icw) as required by IEC 61439. Industrial installations frequently require high rated currents (In up to 2500 A) and high short-circuit withstand — main bus ratings in the 50–100 kA prospective fault range are common — so busbar design, bolted joints, and fault-level verification are critical. Functionally, panels use CT-operated measurement for high-current feeders with CT accuracy classes supporting Class 0.5S revenue metering on primary feeders and Class 1.0 for submetering. Multi-function meters (Schneider PowerLogic PM800/PM8000, Siemens PAC3200/PAC4200, ABB CM-MFM) provide kWh, kvarh, harmonic analysis, sag/swell logging and IEC 61850/Modbus/EtherNet integration where needed. Automated Meter Reading (AMR) via Modbus RTU/TCP, M-Bus or Ethernet and gateways to SCADA/EMS or OPC UA servers are standard. Mechanical and segregation design follows IEC 61439 forms of separation (Form 1 through Form 4b) with Form 3b or Form 4b favored in manufacturing to segregate busbars, instrument circuits and functional units for safety and maintainability. Ingress protection is typically IP31–IP42 for indoor factory environments; corrosive atmospheres or dusty/washed-down lines demand higher IP or marine/tropical coatings and compliance testing per IEC 60068 series. Environmental and safety considerations include HVAC/ventilation for heat dissipation, harmonic heating derating, dedicated CT secondary protection and burden control to avoid saturation, and Ex-rated enclosures or intrinsically safe barriers for hazardous areas per IEC 60079. Typical configurations range from small 1–6 meter panels for submetering to large multi-bay assemblies with 100+ meter points, integrated ATS/MCC interfaces, and centralized PQ logging. Patrion’s engineering practice integrates verified short-circuit calculations, CT/cable selection, and factory FAT/loop tests to deliver IEC 61439-compliant metering & monitoring panels optimized for tough industrial manufacturing workloads.
