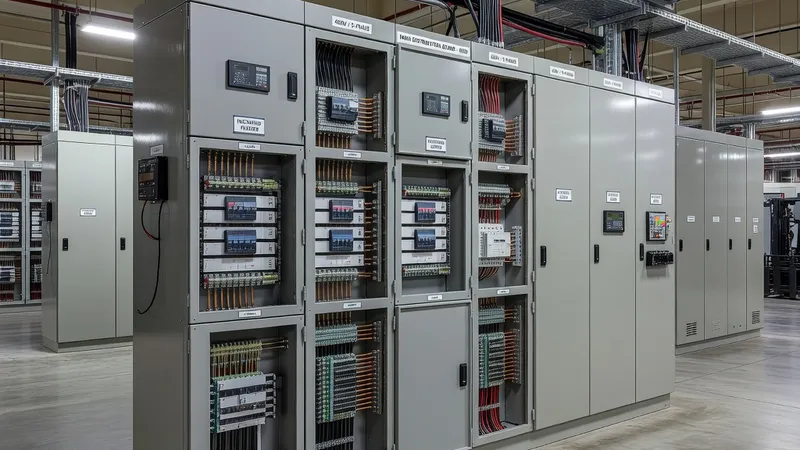

Main Distribution Board (MDB) for Industrial Manufacturing

Main Distribution Board (MDB) assemblies engineered for industrial manufacturing are heavy-duty, type-tested IEC 61439 switchgear assemblies designed to serve as the primary distribution node between the plant transformer/generator set and downstream motor control centers, production-line panels, and process automation loads. Typical MDBs for factories are built for rated currents up to 6300 A, and verified short‑circuit withstand ratings of 50–100 kA (1 s), using type-tested busbar systems with proven temperature‑rise and mechanical stability per IEC 61439‑1/2. Product families and topologies used in the field include Siemens SIVACON, ABB MNS and Schneider Prisma Set/PrismaPact style configurations as reference architectures for segregated, draw‑out or fixed‑type solutions. Industrial MDB design must accommodate large motor inrushes, harmonic heating from VFDs and soft starters, and high short‑circuit levels. Incoming protection is normally an ACB (Siemens 3WL, ABB Emax, Schneider Masterpact) with integrated protection and digital metering; outgoing feeders are MCCBs (Tmax/NSX/Compact families) or draw‑out motor units with adjustable trip curves (IEC 60947 series). Forms of electrical separation range from Form 2b through Form 4b depending on maintenance strategy, selectivity and live‑parts segregation requirements (see IEC 61439‑1 clause on forms of separation). Environmental and installation considerations are critical: IP ratings typically range IP31–IP54 for indoor manufacturing environments; outdoor or corrosive sites may require IP55–IP66 and stainless steel enclosures, special coatings, and climate control. Hazardous area installations require coordination with IEC 60079 and use of Ex-rated breakers, remote switching or purged enclosures. Arc‑flash mitigation and accessibility are addressed through arc‑resistant design practices (IEC 61439 guidance, IEC 61641 testing methods, and NFPA 70E procedures for PPE and maintenance). Ancillary integration includes ATS and generator paralleling relays, PLC/SCADA metering and communication (Modbus, IEC 61850), power quality analysers, harmonic filters, UPS distribution, and selective discrimination studies. Short‑circuit current estimates should be calculated per IEC 60909 and verified against the MDB type‑tests. For industrial manufacturing plants where uptime and maintainability are paramount, MDBs are configured with compartmentalized busbars, draw‑out feeder units for safe isolation, internal segregation (up to Form 4b), and robust mechanical construction to withstand vibration and thermal cycling. Patrion engineers can deliver IEC 61439‑2 type‑tested MDB assemblies tailored to factory power distribution, motor control, and process continuity requirements.
