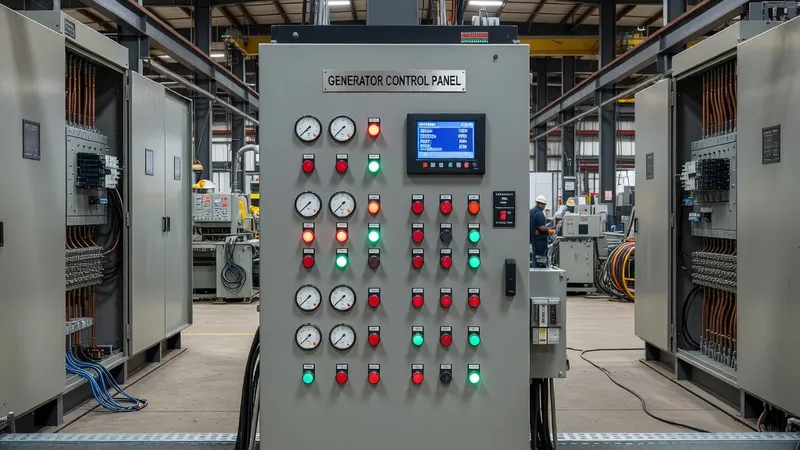

Generator Control Panel for Industrial Manufacturing

Generator Control Panel for Industrial Manufacturing applications are engineered IEC 61439 low-voltage assemblies that combine automatic mains-failure (AMF), synchronization, paralleling, load-sharing and protection functions into a factory-grade switchgear cell. Typical designs reference IEC 61439-1/-2 for assembly construction and verification, IEC 60947 series for switching devices, ISO 8528 for generating set controls and IEC 61000 for EMC. In heavy manufacturing plants the generator control panel must withstand high prospective short-circuit levels (designs commonly target 50–120 kA rms 1s at the main busbar) and busbar rated currents from 800 A up to 4 000 A or higher depending on plant distribution. Outgoing feeder ratings typically range from 63 A to 1 600 A and are protected by MCCBs/ACBs per IEC 60947-2; vacuum circuit-breakers or ACBs are specified for high-interrupting duty at generator output. Common industrial configurations include single-genset AMF/ATS modules, multi-genset synchronizing panels with paralleling breakers and a common bus coupler, and integrated solutions combining generator control with an MCC or Prisma Set/ SIVACON / MNS style LV distribution module. Synchronizing and load-share controllers from Woodward, Deep Sea (DSE) or Basler are frequently used; multifunction protection relays from SEL, ABB RELION or Schweitzer provide reverse-power, over/under voltage, frequency, unbalanced current and thermal protection. Communications for SCADA and DCS use Modbus RTU/TCP, IEC 61850 or DNP3. Industrial environmental considerations include IP ratings from IP31 up to IP55, anti-condensation heaters, tropicalized surface coatings for corrosive atmospheres, seismic bracing and vibration isolation for onsite diesel sets. For hazardous areas IEC 60079 requirements (flameproof or increased-safety enclosures) are applied where combustion risk exists. Thermal management, harmonic filtering and passive/active power-quality equipment are added when large non-linear loads or VFD-driven motor fleets create unacceptable distortion. Forms of separation per IEC 61439 (Form 2, Form 3b, Form 4b commonly) are selected to provide segregation between busbar, incoming and outgoing circuits, instrument/control wiring and cable compartments to reduce service downtime and improve safety during maintenance. Type- and routine-testing (temperature-rise, dielectric, IP, short-circuit making and withstand) are executed to verify short-circuit ratings and temperature performance. Typical plant applications: continuous process lines, rolling mills, pulp & paper, petrochemical auxiliary power (with IEC 60079 adaptations), and automotive stamping plants where continuity of power and rapid paralleling are mission critical. For turnkey projects, panels are offered as factory-tested units compatible with SIVACON/MNS/Prisma Set distribution systems, or as bespoke parallel control cells integrating Deep Sea/Woodward controllers and SEL/ABB protection to meet site-specific coordination, selectivity and NFPA 110 (where applicable) emergency power requirements.
