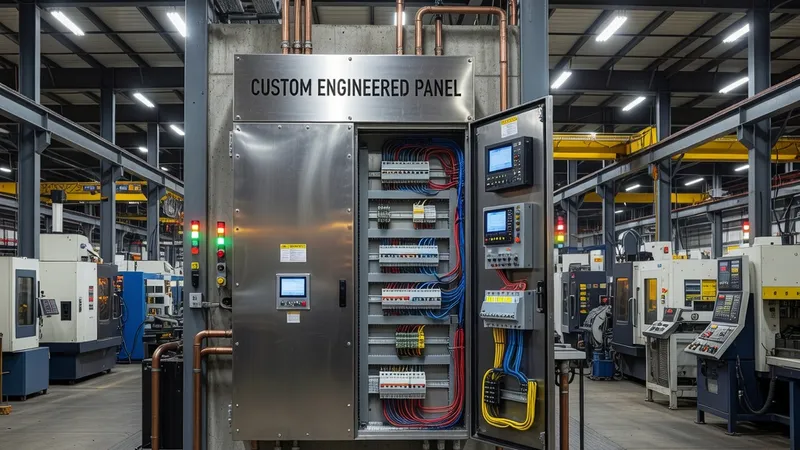

Custom Engineered Panel for Industrial Manufacturing

Custom Engineered Panel assemblies for industrial manufacturing are bespoke IEC 61439 low-voltage switchgear solutions designed to meet the high mechanical, thermal and electrical demands of heavy industry. Typical implementations combine motor control centers (MCC), LV distribution switchboards and process automation I/O into a single lineup—mirroring commercial product families such as Siemens SIVACON, Siemens MNS or Schneider Prisma Set—while delivering project-specific busbar ratings, short-circuit withstand and environmental protection. Design follows IEC 61439-1/-2 for construction, verification and testing, with low-voltage switching devices specified per IEC 60947 series and hazardous-area enclosures per IEC 60079/ATEX where required. Industrial manufacturing panels often require main bus ratings from a few hundred amperes up to 3 150–6 300 A and short-circuit ratings commonly in the 50–100 kA (rms) range at the main incomer; bespoke designs can be engineered for higher prospective fault levels with specified peak kA ratings and verified short-circuit testing per IEC 61439-1. Forms of separation (Form 1 through 4b) are selected to balance maintainability and safety—separate busbar compartments, segregated functional units for power, control and metering, and segregated cable ducts for incoming/outgoing feeders are standard practice. Environmental options include IP20 to IP66 enclosures, painted or stainless steel construction, ATEX/IECEx-certified enclosures for explosive atmospheres, marine approvals (ABS, DNV) for offshore manufacturing, and thermal management for high ambient temperatures. Integration typically incorporates MCC buckets with IEC 60947 contactors, air and molded-case breakers, VFDs/soft starters with harmonic filters, protection relays (e.g., IEC 60255 series), PLCs and factory HMI panels. Advanced metering, energy management and Ethernet/Profinet/Modbus connectivity are incorporated for process monitoring and integration with SCADA. Engineering deliverables include short-circuit and selectivity studies, temperature-rise calculations, cable sizing, conductor and busbar layout, arc-flash mitigation strategy, and Factory Acceptance Tests (FAT) including routine tests mandated by IEC 61439 (dielectric, temperature-rise, short-circuit verification, IP verification). For projects requiring arc containment or arc-resistant designs, mitigation strategies follow recognized practices (IEEE/industry guidelines) and are validated during FAT. Patrion provides turnkey engineering, integration, and verification for manufacturing plants, delivering panels engineered for high motor counts, continuous-process reliability, and simplified onsite installation and maintenance.
