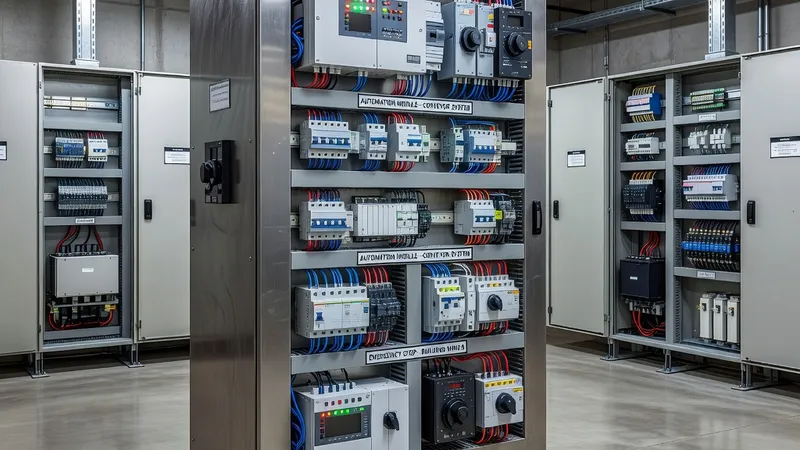

PLC & Automation Control Panel for Commercial Buildings

PLC & Automation Control Panel assemblies for commercial buildings are engineered low-voltage switchgear solutions that combine building management, energy metering, and machine-control technologies in IEC 61439-compliant enclosures. Typical installations include office towers, retail malls, hotels and mixed-use developments where distributed control is required for HVAC, lighting, elevators, fire and life-safety interfaces, access control and tenant metering. Designs commonly integrate PLC/PAC platforms (Siemens SIMATIC S7/ET200, Rockwell ControlLogix/GuardLogix, Schneider Modicon M580, ABB AC500) with remote I/O, industrial HMIs (SIMATIC HMI / PanelView) and managed Industrial Ethernet (Hirschmann, Cisco IE, Moxa) supporting PROFINET, EtherNet/IP, Modbus TCP and BACnet/IP. Panels are engineered to IEC 61439-1/2 requirements with appropriate coordination to IEC 60947 series for switching devices and circuit-breaker interrupt ratings. Construction options reference established LV switchgear families — SIVACON (Siemens), MNS (ABB) and Prisma Set (Schneider) — for main-distribution level coordination, with floor/sub-distribution panels sized from 63 A up to 3200 A bus ratings depending on building scale. Short-circuit withstand and device selection are validated per IEC 61439 short-time test criteria (typically 1 s), with common rated ultimate short-circuit capacities (Icu) of 10 kA, 25 kA, 50 kA and 80 kA depending on incoming protection (coordination with IEC 60947-2 breaker ratings). Internal segregation is designed to Forms of Separation (Form 1 through Form 4b) to meet serviceability and safety expectations for commercial installations — separate metering and incoming compartments, segregated PLC/control sections, and removable instrument compartments. IP ratings from IP31 to IP54 are used per plant location; outdoor and plant-room panels may be specified with enhanced corrosion class C3–C5 and HVAC for thermal management. Environmental and regulatory considerations include EMC immunity/ emission to IEC 61000 series, cybersecurity hardening per IEC 62443 for Ethernet-connected controllers, and hazardous-area adaptations per IEC 60079 for battery/UPS or plant-room zones. Redundancy and availability features frequently include dual-redundant 24 VDC power supplies and battery-backed UPS for I/O and HMIs, controller redundancy (hot-standby or redundant PAC), redundant ring Ethernet topologies with managed VLANs and IGMP snooping, and segregated communications for critical life-safety circuits. Testing protocols include factory type and routine verification per IEC 61439 (warm-functional tests, secondary injection, insulation and continuity checks), FAT documentation, and site-acceptance testing (SAT) coordinated with building EPC schedules. For engineering support and project-specific implementation, Patrion ([email protected]) can deliver detailed coordination studies, short-circuit calculations, and BOMs to align PLC & Automation Control Panels with building codes and tenant requirements.
