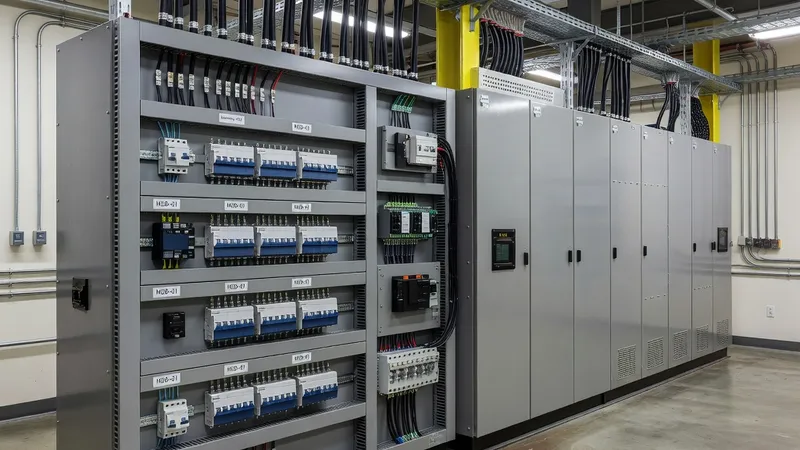

Main Distribution Board (MDB) for Commercial Buildings

Main Distribution Board (MDB) assemblies for commercial buildings are engineered, type-tested IEC 61439-2 switchgear solutions that deliver centralized power distribution, metering, protection, and energy management for offices, retail malls, hotels, and mixed-use developments. Typical MDB assemblies integrate type-tested copper or aluminium busbar systems with verified temperature-rise and short-circuit withstand (Icw 50–100 kA / 1 s) ratings and rated currents up to 6300 A at 400/690 V AC. Product families commonly referenced by design engineers include Siemens SIVACON, ABB MNS, and Schneider Prisma Set; incoming protection is typically an ACB (Masterpact, Emax) with integrated metering and communication, while outgoing circuits use MCCBs with adjustable trip units and selective coordination to achieve discrimination and continuity of service. Commercial MDBs are designed in accordance with IEC 61439-1/-2 verification requirements and linked standards such as IEC 60947 (switchgear and controlgear), IEC 60364 (electrical installations in buildings), and EN 50160 (voltage characteristics). Hazardous area interfaces (e.g., basement plant rooms or fuel storage) follow IEC 60079 requirements where applicable. Forms of separation specified for commercial MDBs typically span Form 2b through Form 4b to segregate busbars, circuit-breaker compartments, and cable entry compartments for safer maintenance and improved selectivity. Environmental design considerations include IP ratings from IP31 to IP54 for indoor commercial environments, corrosion-resistant surface finishes for coastal buildings, and widened creepage distances or conformal coatings in high-humidity applications. Energy management features include Class 0.5 or better energy meters, harmonics monitoring, power-factor correction sections, surge protection (SPD Type 1/2), and communications via Modbus, BACnet, or IEC 61850 gateways for BMS/EMS integration. Safety and continuity measures emphasise earth-fault and residual current protection, main earth and TN/TT earthing arrangements, neutral sizing for unbalanced loads (e.g., IT/telecom rooms), and arc-flash mitigation via selective coordination, arc-resistant enclosures where required, and remote racking/interlocking. Typical configurations range from a single-ACB incoming at ground-floor intake with floorwise sub-distribution to dual-bus or bus-tie designs for critical hospitality or retail installations. For turnkey projects, panels are factory type-tested and verified against rated operational currents, short-circuit withstand, and temperature-rise per IEC 61439, and shipped with test certificates and wiring schematics ready for site integration.
