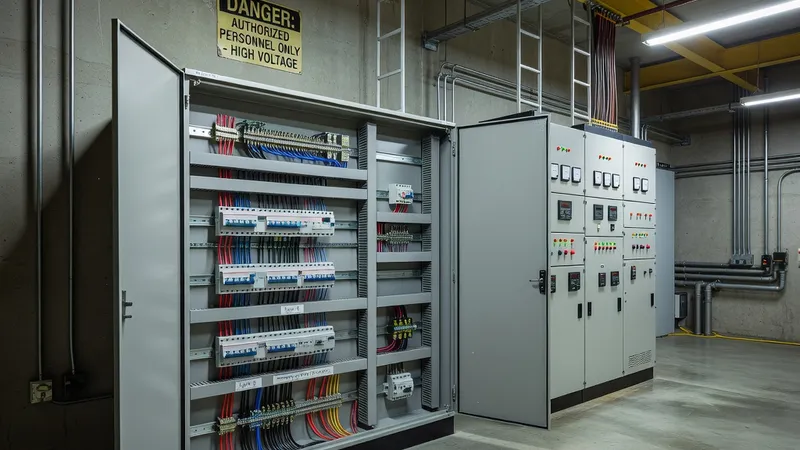

Lighting Distribution Board for Commercial Buildings

Lighting Distribution Boards (LDBs) for commercial buildings are engineered IEC 61439 panel assemblies that combine final lighting distribution, selective protection, and building automation interfaces within a compact footprint. Typical commercial LDBs serve offices, retail, hotels, and mixed-use developments where lighting loads are dominated by LED drivers, DALI ballasts, emergency luminaires and lighting control gear. Designs commonly use industry platforms such as Siemens SIVACON, ABB MNS or Eaton Prisma Set topologies as references for internal segregation, busbar systems and tested short-circuit performance. Panels are verified to IEC 61439-1/2/3/6 and employ switching and protective devices selected to IEC 60947 series standards; transient protection follows IEC 61643 and lightning requirements per IEC 62305 when required. Electrical design parameters for commercial LDBs usually specify rated incoming currents up to 400 A and busbar ratings matched to the distribution (typical 100 A, 250 A, 400 A). Short-circuit withstand levels are engineered and type-verified per IEC 61439, commonly 10 kA, 25 kA or 50 kA symmetrical depending on upstream fault levels and selective coordination objectives. Internal separations use defined Forms of Separation (Form 1 through Form 4b) with Form 4b or Form 2 often applied to ease maintenance and achieve discrimination between incoming protection and outgoing circuits. Protection and functionality: Outgoing circuits are protected by MCBs, RCBOs and RCCBs (Type A or B where electronic loads require), with selective coordination achieved using time/current grading and, where necessary, an upstream MCCB. Emergency lighting circuits are segregated into dedicated busbars or a physically separated compartment with automatic transfer (break-glass or monitored test relays) to comply with local codes and IEC recommendations. Surge protection is typically Type 2 SPD installed at the LDB incoming, coordinated with building-wide Type 1 devices where lightning exposure warrants it. Integration and monitoring: LDBs are commonly furnished with DALI-2 or KNX gateways, and energy metering modules with Modbus or BACnet for BMS integration. Power quality monitoring and earth-fault detection are specified to address harmonics from LED drivers and IT loads in accordance with IEC 61000-series immunity and emission limits. Environmental and installation considerations: IP31–IP42 enclosures suit corridor or riser installations; higher IP ratings and corrosion-resistant coatings are applied for plant rooms, rooftop lobbies, parking garages or coastal sites. Seismic bracing, cable management for riser trunking, and compliance with hazardous-area rules (IEC 60079) are considered where fuel storage or mechanical rooms create risk. Factory type-tested assemblies, combined with on-site verification (routine tests per IEC 61439 clause requirements), ensure predictable performance for commercial building lighting systems.
