Busbar Trunking System (BTS) for Commercial Buildings

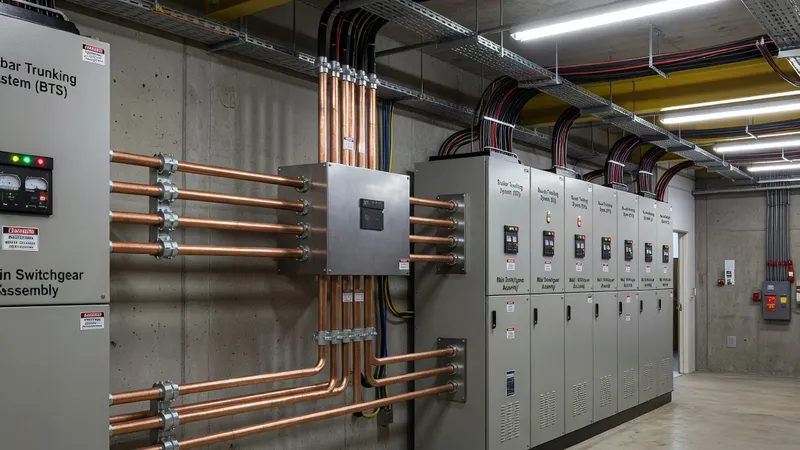

Busbar Trunking System (BTS) assemblies for commercial buildings are prefabricated, modular power distribution systems engineered to meet IEC 61439-6 and the verification requirements of IEC 61439-1/2 for low-voltage switchgear assemblies. Typical commercial BTS solutions use sandwich or edge-mount current carrier designs and are constructed in copper or aluminum with insulated housings, spring-loaded silver‑plated contacts for low contact resistance, and plug‑in tap‑off units for rapid, flexible tenant distribution. Rated currents typically span 100–6300 A with short‑circuit withstand ratings commonly specified from 25 kA up to 100 kA for 1 s (type/routine tests to IEC 61439-6). BTS systems are integrated with MCCBs and ACBs compliant with IEC 60947, electronic trip units, residual current devices, and metering/energy management hardware for BMS and EMS integration. Commercial applications (office towers, retail malls, hotels, mixed‑use developments) require particular attention to forms of separation (Form 1, 2a/2b, 3a/3b and 4a/4b) to segregate phases, earth and tap‑offs and to maintain selective coordination. Fire integrity and shaft penetration details are critical: fire ratings from E30 to E120 are available, with intumescent seals and fire‑rated sections to maintain compartmentation in vertical risers and fire barriers per local codes and to comply with building services coordination. IP protection levels for indoor risers and exposed routes range from IP52 up to IP68 for outdoor or semi‑buried routing; materials and surface treatments are selected for humid, dusty, or mildly corrosive building environments. Designs often include dual busbars (A/B) for redundancy, upstream paralleling of ACBs for generator/utility transfer coordination, and selective tap‑off types (fixed, plug‑in, metered, fused). Modern BTS assemblies incorporate arc‑flash mitigation features, arc‑fault detection, harmonic monitoring and residual current monitoring to protect IT loads and life‑safety systems. Verification testing (temperature‑rise, dielectric, IP, short‑circuit making/breaking) and factory routine tests per IEC 61439-6 are performed; integration testing with switchgear families such as Siemens SIVACON, ABB MNS or Schneider Prisma Set is common when BTS interfaces with floor or main distribution switchboards. Specification and selection require assessment of prospective short‑circuit current (PSCC), selective coordination with downstream protective devices, ambient derating for HVAC/atrium shafts, and clearances for maintenance access. For installations in potentially explosive atmospheres attached to commercial facilities (e.g., boiler rooms, fuel storage), additional component compliance to IEC 60079 and ATEX standards is required. Correctly specified BTS reduces installation time, improves reliability and enables scalable, metered power distribution tailored to commercial building operational strategies.
