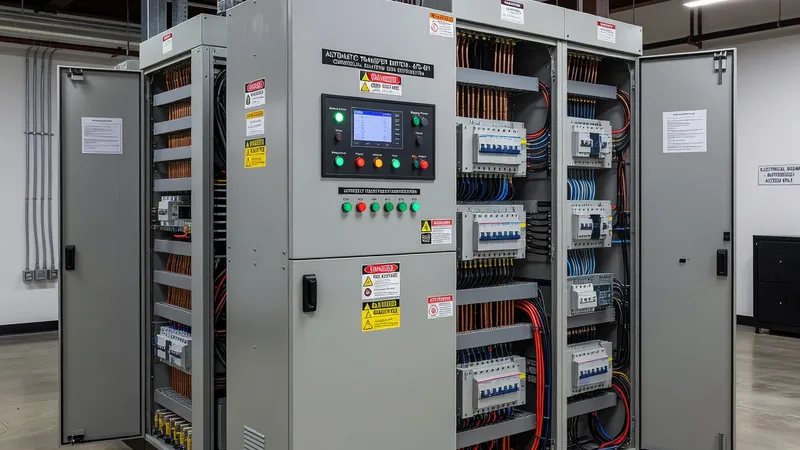

Automatic Transfer Switch (ATS) Panel for Commercial Buildings

Automatic Transfer Switch (ATS) Panel assemblies for commercial buildings are engineered low-voltage switchgear designed to provide reliable, code-compliant automatic changeover between utility and standby sources (generator, UPS or secondary utility). Typical commercial ATS panels integrate IEC 61439-1/2-compliant switchboard construction with transfer mechanisms from proven vendors such as Socomec ATyS (static and motorized families) or ASCO 7000 series, and are often built into mainstream LV frameworks like Siemens SIVACON, Siemens MNS or Schneider PRISMA SeT for simplified site integration. Key electrical ratings for commercial applications are rated currents up to 4,000 A, selectable short-circuit withstand ratings (Icw) typically from 25 kA up to 100 kA (1 s) depending on busbar design and bolted connections, and transfer times configurable between 0.1–10 s for motorized or static/solid-state transfer options. Design follows IEC 61439 type and routine test requirements (temperature-rise, short-circuit, dielectric properties and IP verification) and coordination with IEC 60947 series for switching devices. For North American projects UL 1008 (transfer switches) and NFPA 110 (emergency & standby power) are specified. Forms of separation per IEC 61439 (Form 1, 2a/2b, 3a/3b, 4a/4b) are selected based on serviceability and tenant protection—commercial portfolios commonly require Form 3b or Form 4b separation between incoming sources, ATS control gear, and outgoing tenant feeders. Commercial ATS panels include features critical to buildings: adjustable transfer/retransfer delays; source monitoring (voltage, frequency, phase sequence); intelligent load prioritization and staged shedding for HVAC/elevators/IT; manual override and maintenance bypass; and communication interfaces (Modbus RTU/TCP, BACnet MSTP/IP, optional IEC 61850 gateways). Environmental options include IP31–IP54 enclosures, forced ventilation or HVAC, seismic bracing, altitude derating, and automatic condensation management per IEC 60068 environmental guidance. Controls typically run on supervised DC supply or battery-backed control circuits to guarantee operation during utility collapse. Typical applications: main building transfer at utility entry, generator-paralleling switchgear for multiple engine sets, static transfer for critical IT loads, and integrated ATS + distribution assemblies feeding tenant risers and life-safety loads. Factory Acceptance Tests (FAT) and site commissioning (SAT) include functional transfer testing, interlock verification, coordinated short-time withstand validation and SCADA/BMS integration tests. For procurement, supply packages often specify product families (SIVACON, MNS, PRISMA SeT) and transfer mechanisms (Socomec ATyS, ASCO) alongside IEC 61439-2 declarations of conformity to meet landlord, code and tenant requirements.
